Description

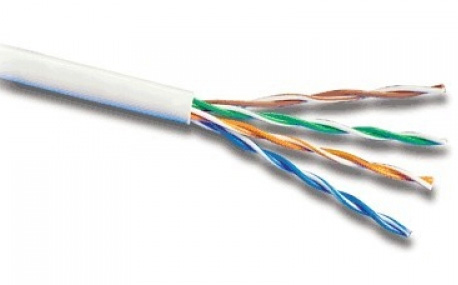

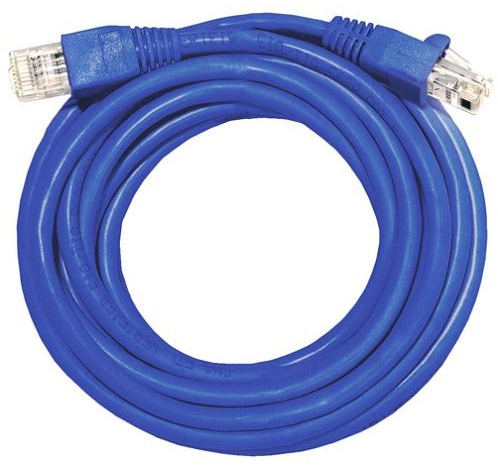

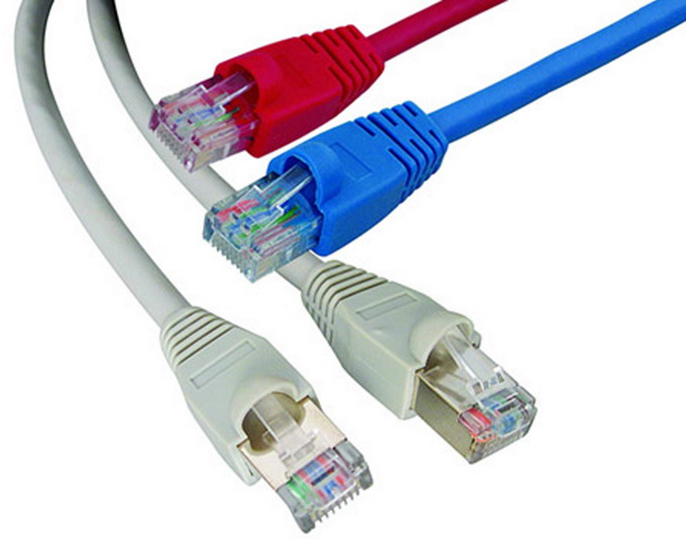

Twisted pair network cable designed for use in Gigabit, Fast Ethernet and Ethernet network environments, terminated with 8P8C modular RJ-45 clip connectors.

Conforms to the TIA standard for twisted pair cable systems as defined in the ANSI/EIA/TIA-568B specifications. The Category 6 cable specification is defined to utilise frequencies up to 250 MHz. Connectors use T568A pin-out assignments (or the now deprecated T568B). Cat. 6 cable provides superior performance in Gigabit Ethernet environments, and can be used in earler Fast Ethernet and Ethernet networks. Cat. 6 cable can be used in 10Gigabit (10GBase-T) environments, but does not support the full 100 metres range specified in the standard, is more susceptible to alien crosstalk noise, and should always be electrically tested when in used in 10Gigabit networks (see Alloy Cat. 6a cable). Cat. 6 cable is backwards compatible at Cat. 5e and Cat. 5 network environments.

We can supply all types of UTP Cat 6 custom cable requirements (length, sheath colour etc). Please conact Alloy with your requirements.
