Patton
2160-2PK
CopperLink Multirate 2-Wire Ethernet Extender Kit with Local and Remote Units
Patton's easy to implement high speed, long range CopperLink 2160 Ethernet Extender Kit comprises a pair of local and remote devices which support network links over UTP wiring of up to 8.3km (5.2ml) range and up to 11.4Mbps data throughput speed.
Patton
2160-2PK
CopperLink Multirate 2-Wire Ethernet Extender Kit with Local and Remote Units
Patton's easy to implement high speed, long range CopperLink 2160 Ethernet Extender Kit comprises a pair of local and remote devices which support network links over UTP wiring of up to 8.3km (5.2ml) range and up to 11.4Mbps data throughput speed.
Resources
Description
Patton's easy to implement high speed, long range CopperLink 2160 Ethernet Extender Kit comprises a pair of local and remote devices which support network links over UTP wiring of up to 8.3km (5.2ml) range and up to 11.4Mbps data throughput speed.

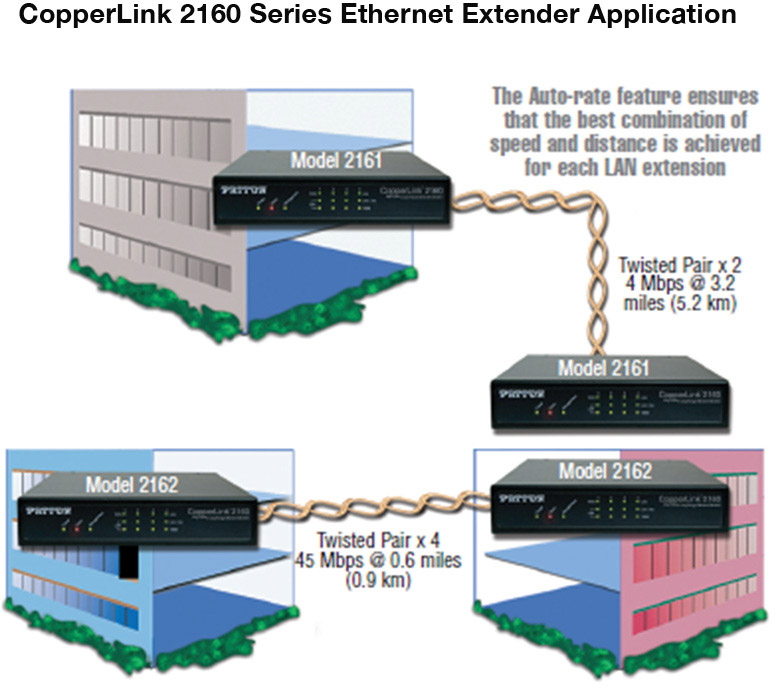

Comprising three models, Patton's CopperLink Model 2160 Series simplifies and provides cost-effective network extension by utilizing pre-existing twisted pair infrastructure, opening the door to low-cost and easily implemented LAN extension. copperlink 2160 LAN Extenders are easy to use and take advantage of existing copper twisted-pair infrastructure to connect LANs at high speed and over long distances.This model, the CopperLink 2160, can achieve the following data throughput speeds and ranges (note that maximum and minimum specifications are given, and that the product can be configured to a range of intermediary confgurations.
Features
| Data Rates - up to 45 Mbps | ||
| Maximum range - 24,000 feet (7,315 meters) | ||
| Get reliable broadband connectivity with fullduplex | ||
| Integrated 4 port 10/100 Ethernet Switch | ||
| Transparent LAN Bridging - Passes higher layer protocols and supports 802.1Q VLAN tagging | ||
| Automatic Learning, Aging and Filtering | ||
| Only allows packets with addresses outside the LAN to be forwarded | ||
| QoS, CoS, and VLAN Support | ||
| Web and SNMP Manageable | ||
| Remote manage the unit from anywhere in the world | ||

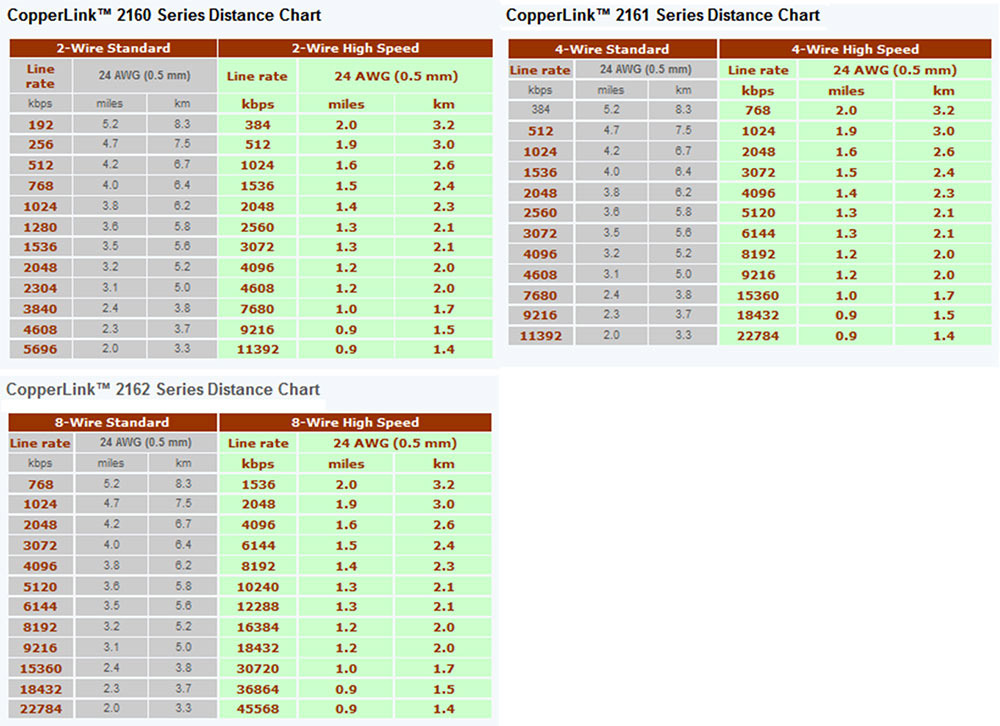

| Model CopperLink 2160: maximum data speed of 11.4Mbps, maximum extended link range of 8.3km (5.2ml) | ||
